Working at height often requires mobility along a horizontal plane. A Horizontal Lifeline (HLL) is a critical component of a Personal Fall Arrest System (PFAS) that provides a continuous anchorage point, allowing workers to move safely across roofs, beams, railcars, and other elevated structures without disconnecting.

At Industrial Ladder & Supply, we offer a selection of reliable Horizontal Lifeline systems and components designed to keep your crew safe and compliant while maintaining necessary mobility on the job. Don't compromise on fall protection – choose engineered solutions you can trust.

  • Product
  • Qty in Cart
  • Quantity
  • Price
  • Subtotal
  • Werner L1030XX 2-Man Cable Horizontal Lifeline System with Cross-Arm Strap Anchors

    Werner L1030XX 2-Man Cable Horizontal Lifeline System with Cross-Arm Strap Anchors

    Werner Fall Protection

    $645.04 - $680.79
    Werner L1030XX 2-Man Cable Horizontal Lifeline System with Cross-Arm Strap Anchors The Werner L1030XX 2-Man Cable Horizontal Lifeline system provides a complete HLL system. The cable lifeline is equiped with a turnbuckle, fist grips,...
    $645.04 - $680.79
    Qty in Cart: 0
    Price:
    $645.04 - $680.79
    Subtotal:
  • Werner L1230XX 2-Man Cable Horizontal Lifeline System with D-Bolt Anchors

    Werner L1230XX 2-Man Cable Horizontal Lifeline System with D-Bolt Anchors

    Werner Fall Protection

    $674.93 - $710.82
    Werner L1230XX 2-Man Cable Horizontal Lifeline System with D-Bolt Anchors The Werner L123030 30 ft 2-Man Cable Horizontal Lifeline system provides a complete HLL system. The cable lifeline is equiped with a turnbuckle, fist grips, tension-indicator and...
    $674.93 - $710.82
    Qty in Cart: 0
    Price:
    $674.93 - $710.82
    Subtotal:

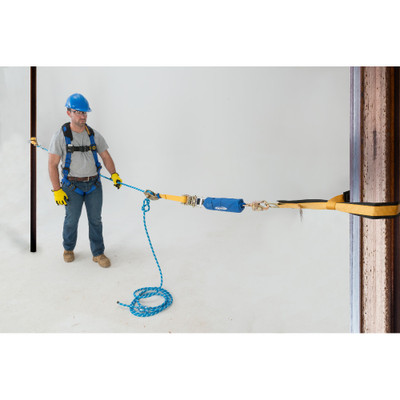

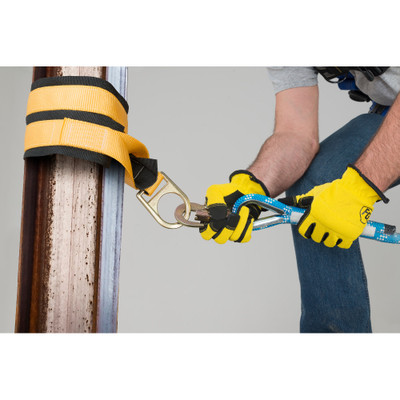

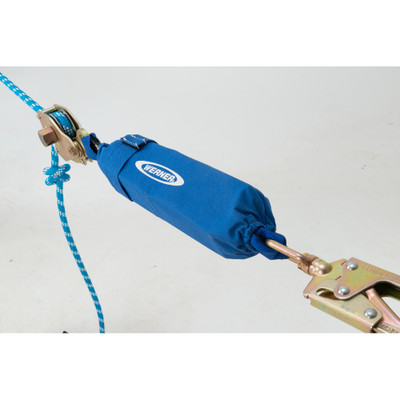

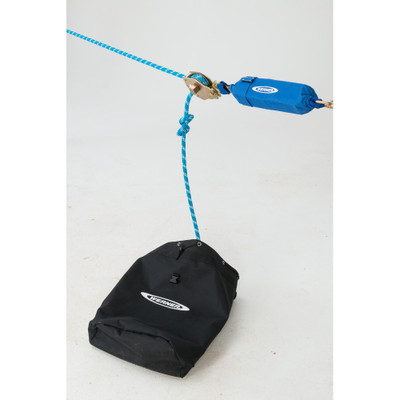

  • Werner L100XXX 2-Man Rope Horizontal Lifeline System, Cross-Arm Strap, Rope Tensioner Werner L100XXX 2-Man Rope Horizontal Lifeline System, Cross-Arm Strap, Rope Tensioner

    Werner L100XXX 2-Man Rope Horizontal Lifeline System, Cross-Arm Strap, Rope Tensioner

    Werner Fall Protection

    $600.21 - $834.90
    STANDARD w/ CROSS ARM STRAPS – lifeline 2-Man HLL Werner Temporary Rope Horizontal Lifeline systems provide a complete HLL system in a convenient backpack. The L100XXX 2-Man Rope Horizontal Lifeline is a kernmantle synthetic rope lifeline...
    $600.21 - $834.90
    Qty in Cart: 0
    Price:
    $600.21 - $834.90
    Subtotal:

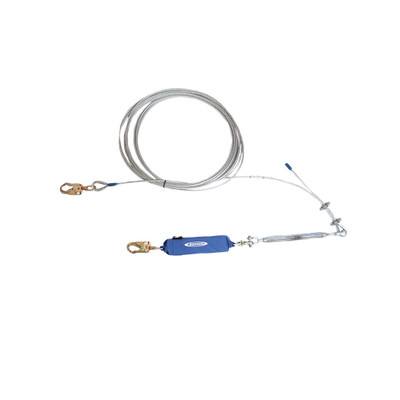

  • Werner L1530XX 2-Man Cable Horizontal Lifeline System

    Werner L1530XX 2-Man Cable Horizontal Lifeline System

    Werner Fall Protection

    $588.78 - $624.38
    Werner L1530XX 2-Man Cable Horizontal Lifeline System (No Anchors Supplied) The Werner L1530XX 2-Man Cable Horizontal Lifeline system provides a complete HLL system. The cable lifeline is equiped with a turnbuckle, fist grips, tension-indicator and snap...
    $588.78 - $624.38
    Qty in Cart: 0
    Price:
    $588.78 - $624.38
    Subtotal:

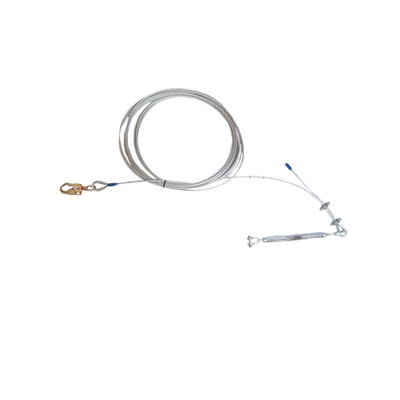

  • Werner L1630XX Replacement Cable Assembly for 2-Man Cable Horizontal Lifeline System

    Werner L1630XX Replacement Cable Assembly for 2-Man Cable Horizontal Lifeline System

    Werner Fall Protection

    $408.30 - $444.04
    Werner L1630XX Replacement Cable Assembly for 2-Man Cable Horizontal Lifeline System The Werner L1630XX Replacement Cable Assembly is for the 2-Man Cable Horizontal Lifeline system. The replacement cable assembly is equiped with a turnbuckle, fist grips,...
    $408.30 - $444.04
    Qty in Cart: 0
    Price:
    $408.30 - $444.04
    Subtotal:
  • Werner L102XXX 2-Man Rope Horizontal Lifeline System, Cross-Arm Strap, Ratchet Tensioner Werner L102XXX 2-Man Rope Horizontal Lifeline System, Cross-Arm Strap, Ratchet Tensioner

    Werner L102XXX 2-Man Rope Horizontal Lifeline System, Cross-Arm Strap, Ratchet Tensioner

    Werner Fall Protection

    $681.08 - $906.54
    L102XXX 2-Man Rope Horizontal Lifeline System, Cross-Arm Strap, Ratchet Tensioner Werner Temporary Rope Horizontal Lifeline systems provide a complete HLL system in a convenient backpack. The L102XXX 2-Man Temporary Rope Horizontal Lifeline is a...
    $681.08 - $906.54
    Qty in Cart: 0
    Price:
    $681.08 - $906.54
    Subtotal:
  • Werner L120XXX 2-Man Rope Horizontal Lifeline System, D-Bolt Anchor, Rope Tensioner Werner L120XXX 2-Man Rope Horizontal Lifeline System, D-Bolt Anchor, Rope Tensioner

    Werner L120XXX 2-Man Rope Horizontal Lifeline System, D-Bolt Anchor, Rope Tensioner

    Werner Fall Protection

    $629.51 - $859.00
    L120XXX 2-Man Horizontal Rope Lifeline System,D-Bolt Anchor, Rope Tensioner Werner Temporary Rope Horizontal Lifeline systems provide a complete HLL system in a convenient backpack. The L12XXX 2-Man Rope Horizontal Lifeline is a kernmantle synthetic...
    $629.51 - $859.00
    Qty in Cart: 0
    Price:
    $629.51 - $859.00
    Subtotal:
  • Werner L122XXX 2-Man Rope Horizontal Lifeline System, D-Bolt Anchor, Ratchet Tensioner Werner L122XXX 2-Man Rope Horizontal Lifeline System, D-Bolt Anchor, Ratchet Tensioner

    Werner L122XXX 2-Man Rope Horizontal Lifeline System, D-Bolt Anchor, Ratchet Tensioner

    Werner Fall Protection

    $709.06 - $934.67
    L122XXX Premium 2-Man Rope Horizontal Lifeline System Werner Temporary Rope Horizontal Lifeline systems provide a complete HLL system in a convenient backpack. The L122XXX 2-Man Rope Horizontal Lifeline is a kernmantle synthetic rope lifeline equipped...
    $709.06 - $934.67
    Qty in Cart: 0
    Price:
    $709.06 - $934.67
    Subtotal:

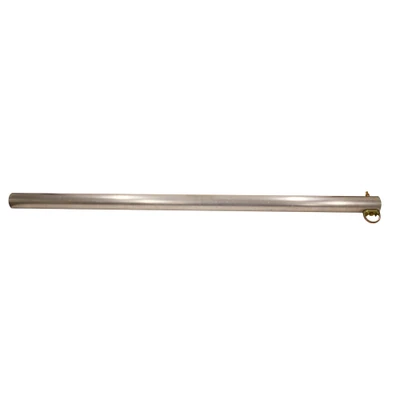

  • Werner L400001 7.5ft Aluminum End Stanchion with D-Bolt Anchor Werner L400001 7.5ft Aluminum End Stanchion with D-Bolt Anchor

    Werner L400001 7.5ft Aluminum End Stanchion with D-Bolt Anchor

    Werner Fall Protection

    $860.69
    Werner L400001 7.5ft Aluminum End Stanchion with D-Bolt Anchor The Werner L400001 7.5ft Aluminum End Stanchion with D-Bolt Anchor is an end anchorage connector and used with the Werner Horizontal Lifeline system. End Stanchions allow the cable horizontal...
    $860.69
    Qty in Cart: 0
    Price:
    $860.69
    Subtotal:

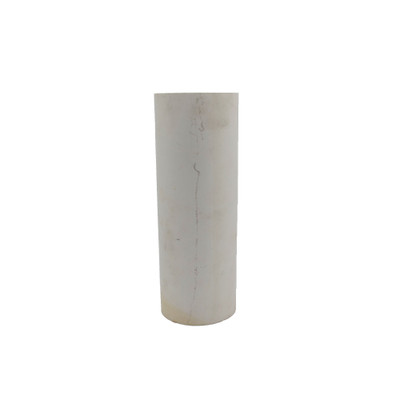

  • Werner L400002 12 in. Cast-In-Place PVC Sleeve

    Werner L400002 12 in. Cast-In-Place PVC Sleeve

    Werner Fall Protection

    $63.43
    Werner L400002 12 in. Cast-In-Place PVC Sleeve The Werner L400002 12in Cast-In-Place PVC Sleeve is designed to be cast into freshly poured concrete and comes with a cap to seal the end preventing fresh concrete from filling the sleeve. After the concrete...
    $63.43
    Qty in Cart: 0
    Price:
    $63.43
    Subtotal:

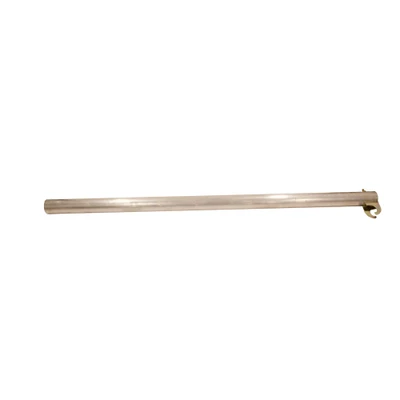

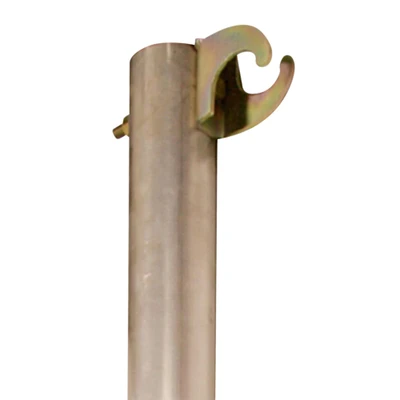

  • Werner L400003 7.5ft Aluminum Intermediate Stanchion with Pass-Through Bracket Werner L400003 7.5ft Aluminum Intermediate Stanchion with Pass-Through Bracket

    Werner L400003 7.5ft Aluminum Intermediate Stanchion with Pass-Through Bracket

    Werner Fall Protection

    $860.69
    Werner L400003 7.5ft Aluminum Intermediate Stanchion with Pass-Through Bracket   The Werner L400003 7.5ft Aluminum Intermediate Stanchion with Pass-Through Bracket is used with the Werner horizontal lifelines to create multiple spans, helping reduce...
    $860.69
    Qty in Cart: 0
    Price:
    $860.69
    Subtotal:
  • Total: items /

Adding your products to cart

What is a Horizontal Lifeline System?

A Horizontal Lifeline isn't just a cable or rope; it's an engineered system comprising:

Anchorage Connectors:

  • Secure points on the structure at the ends of the lifeline, designed to withstand significant forces.

The Lifeline:

  • A flexible line (steel cable, synthetic rope, or webbing) tensioned between the anchors.

Tensioning Device:

  • To apply the correct tension to the lifeline.

Energy Absorber (Crucial!):

  • A device that deploys during a fall to limit the forces exerted on the anchors, the structure, and the fallen worker. Many HLL systems require this.

Hardware:

  • Necessary connectors, turnbuckles, etc., to assemble the system.

Why Horizontal Lifelines are Essential for Fall Safety

Implementing an HLL system offers vital safety benefits:

Continuous Fall Protection:

  • Allows workers to remain tied off while moving horizontally, eliminating dangerous disconnect/reconnect points common with single anchor points.

Increased Mobility:

  • Provides freedom to move along a work area without requiring multiple anchor points along the path.

Accommodates Multiple Users:

  • Many systems are designed to safely support more than one worker simultaneously (always check specific product specifications).

Compliance:

  • Helps meet OSHA, ANSI, and other regulatory requirements for fall protection in areas requiring horizontal movement.

Reduces Fall Forces:

  • Systems incorporating energy absorbers significantly reduce the impact force during a fall, protecting both the worker and the structure.



Explore Our Selection: Types of Horizontal Lifelines

We offer HLL solutions to suit different applications and durations:

Temporary Horizontal Lifelines:

  • Ideal For: Short-term projects, maintenance tasks, and jobs where setting up permanent anchors is impractical.

Features:

  • Often lightweight, portable, utilize synthetic rope or webbing, and come as complete kits for quick setup and dismantle. Typically include an integrated energy absorber.

Permanent / Engineered Horizontal Lifelines:

  • Ideal For: Structures where work is performed regularly, such as rooftops, bridges, industrial machinery, and rail yards.

Features:

  • Typically use durable steel cable, require fixed, robust anchor points (often engineered), and provide a long-term fall protection solution. Available as complete systems for specific lengths or as individual components for custom configurations.

Key Considerations & What to Look For

Choosing the right HLL system requires careful evaluation based on your specific needs and work environment:

Application:

  • Temporary job site vs. permanent installation?

User Capacity:

  • How many workers need to be tied off at once? (This must match the system's rating).

Span Length & Configuration:

  • The distance between anchors, and if intermediate supports are needed or possible.

Required Anchorage Strength:

  • What minimum strength must the structure's anchor points provide? This is critical and varies significantly between systems.

Energy Absorber: Does the system include one? Is one required for your application and anchors? (Most modern systems do require one).

Fall Clearance: CRITICAL SAFETY CALCULATION! The distance required below the working surface to safely arrest a fall. This calculation is complex and depends on the system length, sag, energy absorber deployment, lanyard length, and height of the worker. You must have sufficient clearance.

Material: Steel (durability, permanent) vs. Synthetic (portability, temporary).

Environment: Consider corrosion resistance for outdoor or harsh conditions.

Installation Requirements: Does it require special tools or expertise?

Horizontal Lifelines FAQs

What is the primary purpose of a Horizontal Lifeline?

To provide a continuous anchorage point along a horizontal path, allowing workers to move and maintain 100% tie-off while working at height.

What is the difference between a temporary and a permanent HLL?

Temporary HLLs are typically portable, use synthetic rope/webbing, and are designed for short-term jobs. Permanent HLLs use steel cable, require fixed anchors, and are installed for long-term use on structures.

Why is an Energy Absorber important in an HLL system?

An energy absorber reduces the forces generated during a fall. Without it, the impact force on the anchor points, the structure, and the worker could be dangerously high, potentially causing structural failure or severe injury. Most HLLs require one.



What is "Fall Clearance" and why do I need to calculate it?

Fall Clearance is the minimum vertical distance required below the work surface to safely arrest a fall. It includes the length of your lanyard, the distance the energy absorber deploys, the sag in the horizontal lifeline, and a safety factor/height of the worker. Calculating and ensuring sufficient fall clearance is absolutely critical for preventing a worker from hitting the lower level or obstructions during a fall.

How many workers can use a Horizontal Lifeline?

This varies significantly by the specific system and its design. Always check the product specifications or manufacturer's instructions for the maximum number of users allowed on that particular HLL at any given time.

Can I use any cable or rope with anchors as a Horizontal Lifeline?

Absolutely NOT. Horizontal Lifelines are engineered systems. Using non-engineered components or improperly installed systems can lead to catastrophic failure. Always use complete, certified systems and components as specified by the manufacturer and relevant safety standards.

Do I need special training to use or install an HLL?

Yes. OSHA and ANSI standards require that HLLs be designed and installed under the supervision of a Qualified Person and used under the supervision of a Competent Person. Proper training on system limitations, fall clearance calculations, inspection, and proper use is essential.

What kind of anchor points are required for an HLL?

Anchor points must be capable of supporting the anticipated forces generated by a fall on the HLL system. This often means anchors rated for 5,000 lbs per attached worker or as specified by the engineered system's design and forces (which can be much higher). The structure itself must also support these forces.
