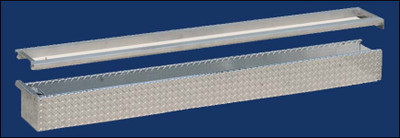

System One - Pullout Trays for use in the StowAway Drawers

System One - Pullout Trays for use in the StowAway Drawers

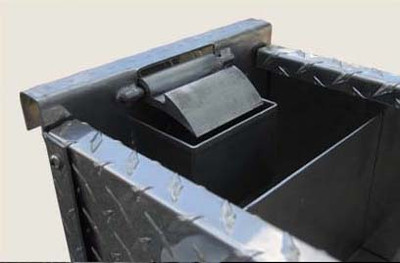

Pullout Trays are easily installed in StowAway™ Drawers. The Tray Slide rails are mounted to the inside walls of the drawer with stainless steel screws and lock nuts and the Pullout Tray is simply set on the rails and pushed in. To use the Pullout Trays the door is left in the hinged position (not fastened closed). One or two trays can be installed in a drawer.

Pullout Trays are made from .100” 5052 alloy aluminum alloy and ride on aluminum extruded rails with nylon guides. The rails are mounted to inside walls of the drawer with stainless steel screws and self locking nuts and there is sufficient space to mount one Pullout Tray over the other if desired.

Dividers for both drawers and trays are made from .100” 5052 alloy aluminum alloy. They are fastened into the drawers and trays using 3M® VHB® (Very High Bond) Tape (supplied). In industry this tape take the place of rivets, spot welds, and other permanent fasteners and so when positioning these dividers great care must be taken to place them in their final positions.
