Werner Fall Protection

Werner T700000XRW Confined Space Kit

(No reviews yet) Write a Review
SKU:
T700000XRW
UPC:
051751144291
MPN:
T700000XRW
Weight:
95.00 LBS
Shipping:
Calculated at Checkout
$2,974.68

Description

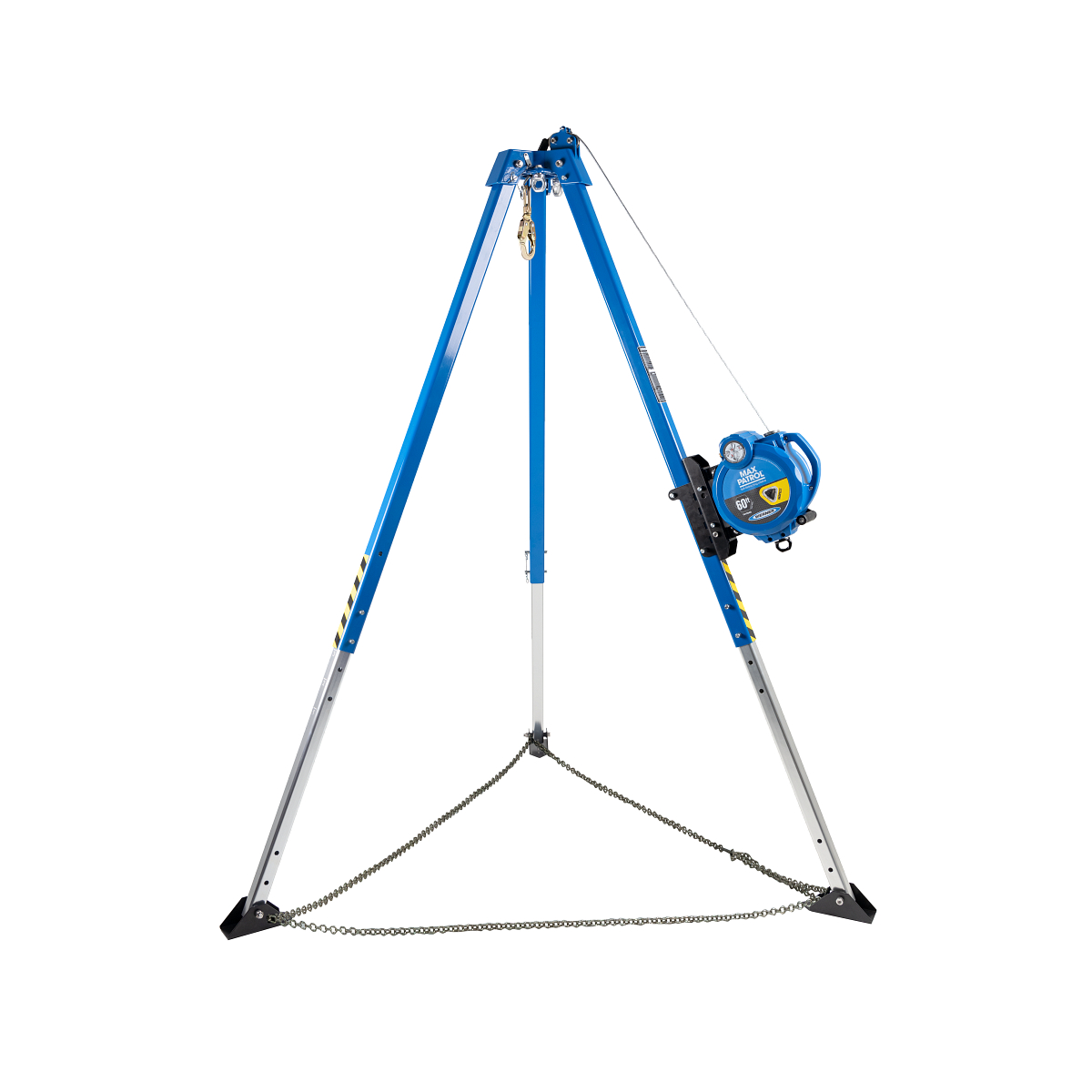

The Werner T700000XRW Confined Space Kit includes the T100108 8ft Aluminum Tripod, the T410060 60ft 3-Way Self-Retracting Lifeline with Rescue Capability (SRL-R)

The Werner T700000XRW Confined Space Kit includes the T100108 8ft Aluminum Tripod, the T410060 60ft 3-Way Self-Retracting Lifeline with Rescue Capability (SRL-R), T100008B Mounting Bracket that attaches the 60ft 3-Way SRL-R to any leg of the tripod, and the T200007 Pulley and Carabiner allow the addition of another system to the tripod. The Tripod extends from 58 inches to 97 inches in height for installation over openings with a maximum diameter of 42 inches when fully extended and meets the requirements of ANSI Z359.18-2017 Type A. The 3-Way SRL-R is designed for a single user with a capacity of up to 310 pounds total working weight and has an aluminum housing with a lifting ratio of 6.5:1. When tested to the requirements of the ANSI Z359.14-2021 standard for Class 1 for SRLs, the 3-Way SRL-R has an average arrest force of 1,350 pounds and a maximum arrest distance of 24 inches.



Features

  • Confined Space Kit with T100108 8-foot Aluminum Tripod, the T410060 60-foot 3-Way SRL-R, and T100008B Mounting Bracket
  • High strength lightweight Aluminum Tripod extends from 58 inches to 97 inches in height
  • Tripod meets ANSI Z359.18-2017 Type A and OSHA regulations
  • The 60 foot 3-Way SRL-R has maximum arrest distance of 24-inches
  • The 3-Way SRL-R meets ANSI z359.14-2021 Class 1 SRL-R and OSHA Standards
  • Pulley is for use with the 3/16-inch steel cable on the 3-Way SRL-R and has an 8,100 lb tensile breaking strength

Package Contents

Part NumberQuantityDescription
T200007 1 Aluminum Pulley T200007
T100008B 1 Tripod Mounting Bracket T100008B
T410060 1 60ft 3-Way SRL Retrieval T410060
T100108 1 8ft Aluminum Tripod T100108
A100301 1 A100301 3/4in Gate Opening Steel Self-Locking Carabiner, 3600lb Gate
