Werner Fall Protection

Werner T700000XR Confined Space Kit

(No reviews yet) Write a Review
SKU:
T700000XR
UPC:
051751144277
MPN:
T700000XR
Weight:
88.50 LBS
Shipping:
Calculated at Checkout
$2,850.45

Description

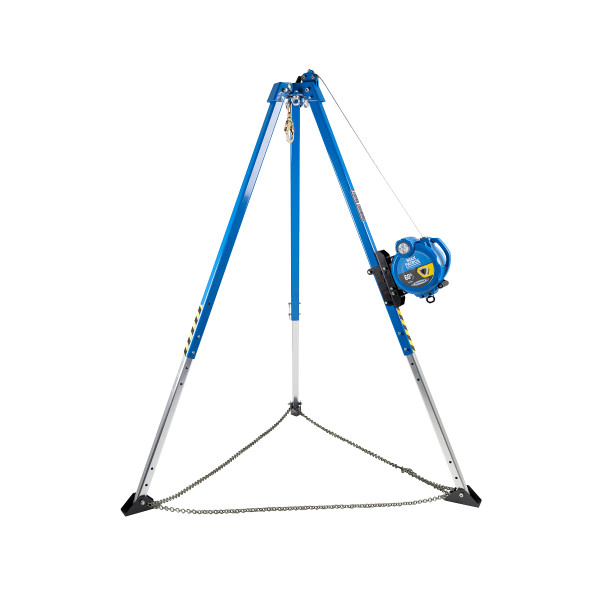

Werner T700000XR Confined Space Kit includes the T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way Self-Retracting Lifeline with Rescue Capability (SRL-R)

The Werner T700000XR Confined Space Kit includes the T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way Self-Retracting Lifeline with Rescue Capability (SRL-R) and T100008B Mounting Bracket that attaches the 60-foot 3-Way SRL-R to any leg of the tripod. The Tripod extends from 58-97-inches in height for installation over openings with a maximum diameter of 42-inches when fully extended and meets the requirements of ANSI Z359.18-2017 Type A. The 3-Way SRL-R is designed for a single user with a capacity up to 310 pounds total working weight and has an aluminum housing with a lifting ratio of 6.5:1. When tested to the requirements of the ANSI Z359.14-2021 standard for Class 1 for SRLs, the 3-Way SRL-R has an average arrest force of 1,350 pounds and a maximum arrest distance of 24-inches.



Features



  • Confined Space Kit includes T100108 8-foot Aluminum Tripod, the T410060 60-foot 3-Way SRL-R, and T100008B Mounting Bracket
  • High strength, lightweight Aluminum Tripod extends from 58-inches to 97-inches in height
  • Tripod meets ANSI Z359.18-2017 Type A and OSHA regulations
  • The 60-foot 3-Way SRL-R has a maximum arrest distance of 24-inches
  • 3-Way SRL-R meets ANSI z359.14-2021 Class 1 SRL-R and OSHA Standards
  • The 3/16-inch steel cable on the 3-Way SRL-R has an 8,100 lb tensile breaking strength

Package Contents

Part NumberQuantityDescription
T100108 1 8ft Aluminum Tripod T100108
T200007 1 Aluminum Pulley T200007
T100008B 1 Tripod Mounting Bracket T100008B
T410060 1 60ft 3-Way SRL Retrieval T410060
T510080B 1 T510080B 60ft Material Hoist Bracket
T510045 1 60ft Material Hoist T510045
A100301 1 A100301 3/4in Gate Opening Steel Self-Locking Carabiner, 3600lb Gate
