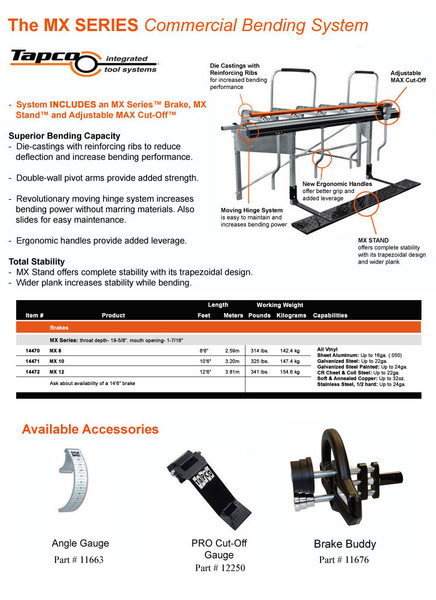

Tapco MX Series Brakes

The solution for heavy-duty commercial bending power, the MX Series commercial bending system includes an MX Series brake, MX Stand and Adjustable MAX Cut-Off.

Stability and toughness are built into the MX Series brake, with double-walled pivot arms providing added strength and die castings with reinforcing ribs for increased bending performance and reduced deflection. The brake's ergonomic handles deliver a superior grip and added leverage while the easy-maintenance moving hinge system increases bending power without marring material.

The MX Stand with its trapezoidal design and wide plank assures stability. The included Adjustable MAX Cut-Off shear provides precise, factory-quality cuts on a wide range of materials and eliminates the need for unsafe, repetitive utility knife and conventional sheer cutting. What's more, it provides a clean transfer of power with its comfortable, ergonomic handle.

Features:

• Available Lengths: 8' 6", 10' 6" and 12' 6"
• Weight: 8' 6" brake 314 lbs; 10' 6" brake 325 lbs; 12' 6" brake 341 lbs.
• Throat Depth: 19-5/8"
• Mouth Opening: 1-7/16"

Bending Capacities:

• All vinyl; Galvanized steel up to 22 ga
• Galvanized steel painted up to 24 ga
• CR sheet and coil steel up to 22 ga
• Soft and annealed copper up to 32 oz
• Stainless steel 1/2 hard up to 24 ga.

Adjustable MAX Cut-Off Capacities:

• Aluminum up to .040
• Galvanized steel up to 24 ga
• Soft copper up to 32 oz
• Stainless steel up to 24 ga.
