Tapco Parts
Tapco Brake Part #10351 / Lifting Handle Assembly
- SKU:
- 10351
- UPC:
- 8.04E+11
- MPN:
- 10351
- Weight:
- 5.00 LBS
- Shipping:
- $12.95 (Fixed Shipping Cost)
Description
Tapco Brake Part #10351
Specifications

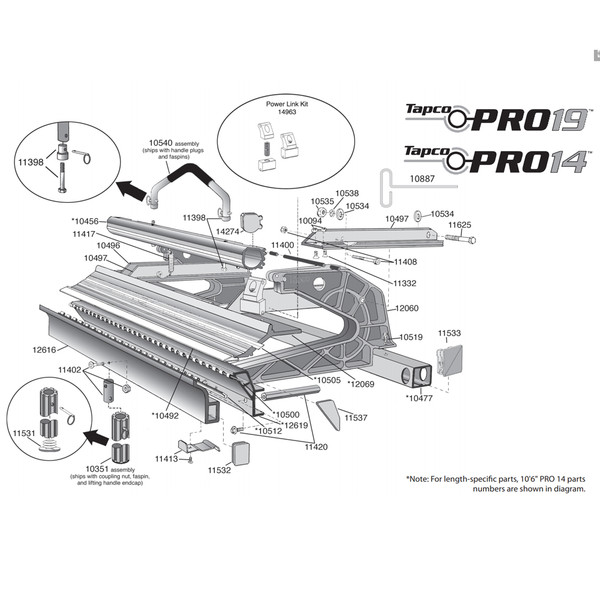

Tapco Pro 19 Replacement Parts | |||
---|---|---|---|
Item # | Description | Item # | Description |
10094 | ¼ -20 Hex Flange Nut | 11400 | Locking Handle Pin Kit |
10333 | 8'6" Back Rail | 11402 | Pro Handle Plug Kit |
10337 | 10'6" Back Rail | 11408 | Bolt and Nut Kit(5) |
10341 | 12'6" Back Rail | 11413 | Hinge Clip Kit |
10347 | Left Pivot Arm | 11420 | Coupling Nut Kit |
10348 | Right Pivot Arm | 11531 | Lifting Handle Cap |
10351 | Lifting Handle Assembly (1 Handle) | 11532 | Moving Hinge Cap |
10452 | 8'6" Locking Handle | 11533 | Back Rail Cap |
10456 | 10'6" Locking Handle | 11536 | Left Base Hinge Cap (not shown) |
10460 | 12'6" Locking Handle | 11537 | Right Base Hinge Cap |
10491 | 8'6" Stainless Edge | 11625 | 3/8-16 x 3 ¼" Hex Cap Bolt |
10492 | 10'6" Stainless Edge | 12041 | Pro 19 Parts Bag |
10493 | 12'6" Stainless Edge | 12061 | Pro 19 C Casting |
10499 | 8'6" Hinge Pin | 12067 | 8'6" Locking Anvil |
10500 | 10'6" Hinge Pin | 12069 | 10'6" Locking Anvil |
10501 | 12'6" Hinge Pin | 12071 | 12'6" Locking Anvil |
10504 | 12'6" Tape Measure | 12615 | 8'6" Moving Hinge |
10505 | 10'6" Tape Measure | 12616 | 10'6" Moving Hinge |
10506 | 8'6" Tape Measure | 12617 | 12'6" Moving Hinge |
10511 | 8'6" Vinyl Strip | 12618 | 8'6" Fixed Hinge |
10512 | 10'6" Vinyl Strip | 12619 | 10'6" Fixed Hinge |
10513 | 12'6" Vinyl Strip | 12620 | 12'6" Fixed Hinge |
10519 | ¼ -20 x ¾" Hex Wash HD Screw | 14896 | Locking Bar Cap |
10534 | 3/8" Flat Washer | 14963 | Power Link Kit (6) |
10535 | 3/8-16 Nylock Hex Nut | ||
10538 | 3/8" Lock Washer | ||
10540 | Hemming Handle Assembly | ||
11332 | Screw ¼ -20 x 7/8" Flat HD Screw | ||
11397 | ¼" x 1¼" Faspin Kit | ||
11398 | Hemming Handle Plug Kit (2) Locking Handle Plugs (2) 3/8"-16 x 2 1/4" Bolts |
