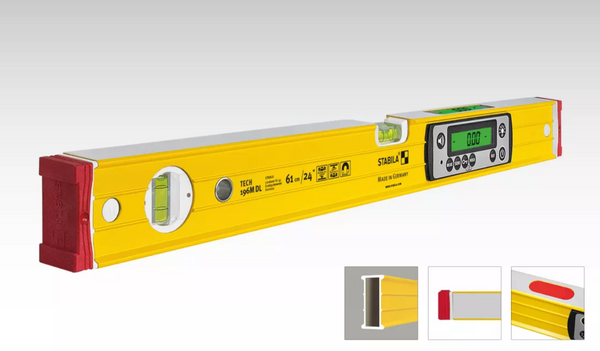

Stabila Tech 196 M DL Digital Spirit Level

Water, dust, dirt and impacts – tools have to take a lot. The TECH 196 M DL electronic spirit level from STABILA is ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with adjustable illumination, acoustic guidance, extra-strong rare earth magnets and numerous display modes.

Features

• Electronic spirit level with two digital displays for instant measurement of inclines, slopes and angles.
• ULTRA-PROTECT: Optimum protection against dust and water in accordance with IP 67 – the spirit level can be temporarily submerged.
• Optimal read-out: Two digital displays, illuminated at the press of a button.
• Acoustic guidance: Quick alignment of structural elements without looking at the spirit level – with two audible signals.
• CAL-FREE: In daily use, it is not necessary to calibrate the electronics – even after falling or being exposed to temperature fluctuations.
• The digital display rotates to the reverse position.
• REF-MODE: Take, save and transfer an angle measurement to other structural elements.
• KEY-LOCK: Keyboard lock to prevent accidental input.
• Display modes: °, %, mm/m, in/ft – decimal and as a fraction.
• ROOF-PITCH mode (in/ft) to quickly determine the roof pitch.
• Long operating time: Up to 400 hours.
• Extra-strong rare-earth magnet system.
• Case for safe transport.

Applications

• Ideally suited for metal construction, metalwork and formwork. Users have free hands when aligning and adjusting structural elements.

Technical data

• Measurement accuracy in normal position - ±1/32in @ 72in
• Measurement accuracy in reverse position - ±1/32in @ 72in
• Accuracy with electronic inclination measurement at 0° and 90° +/- 0.05°
• Accuracy with electronic inclination measurement at 1° to 89° +/- 0.10°
• Measuring modes - °, %, mm/m, inch/ft
• Number of measuring surfaces - 2
• Magnet system - Rare-earth magnet
• End caps - Removable / Wall Grips / Shock Absorbing
• Profile - Rectangular profile with ribs
• Protection class - IP 67



Models

	Length	UPC Barcode	Cat. #
	24 in	089634395201	39520
	48 in	089634395409	39540
