Stabila 35XXX | Type 106T Extendable Plate Levels
(No reviews yet)
Write a Review
- SKU:
- 35XXX
- Weight:
- 10.00 LBS
- Shipping:
- Free Shipping
- »:
- FREE FREIGHT on all Stabila items over $100.00
Description

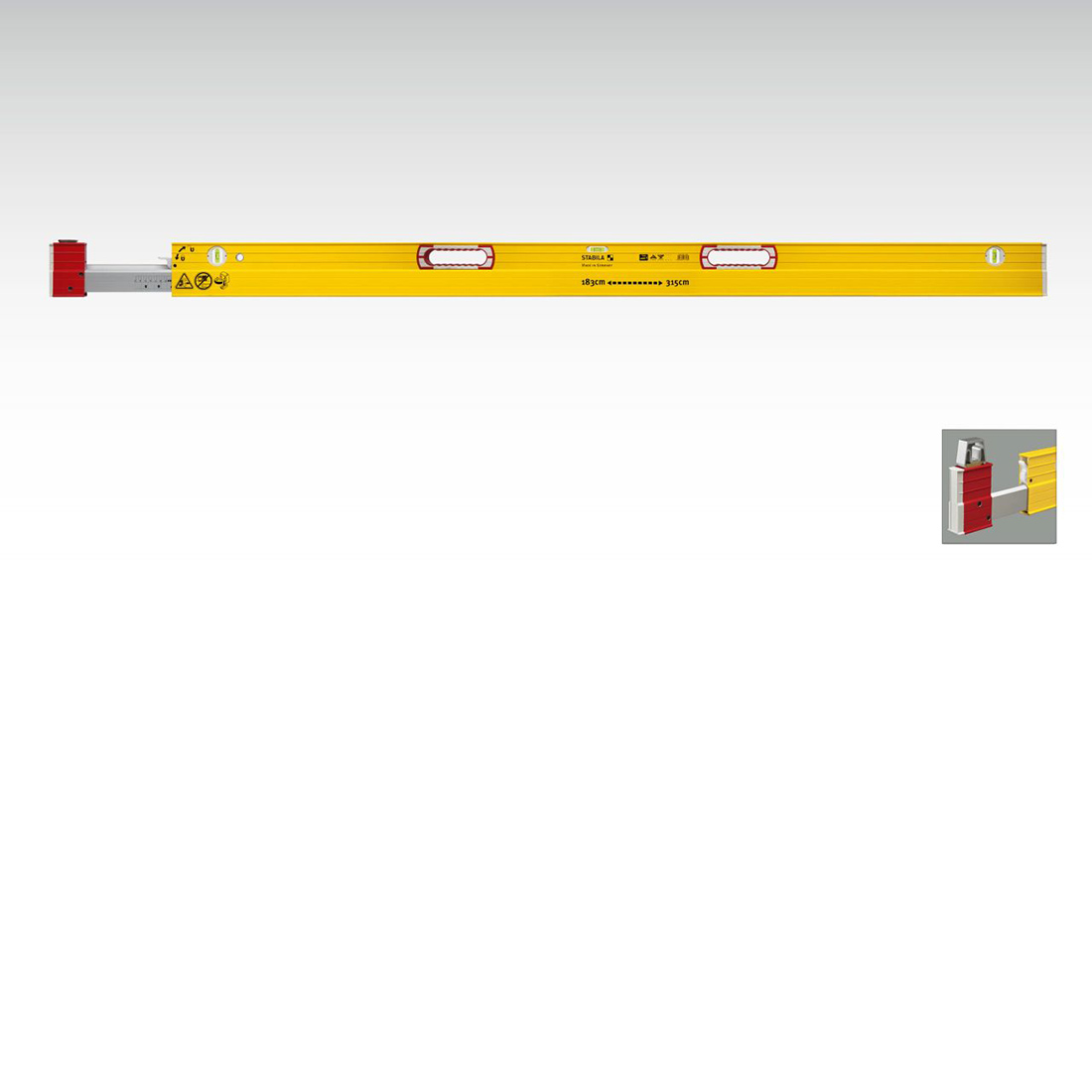

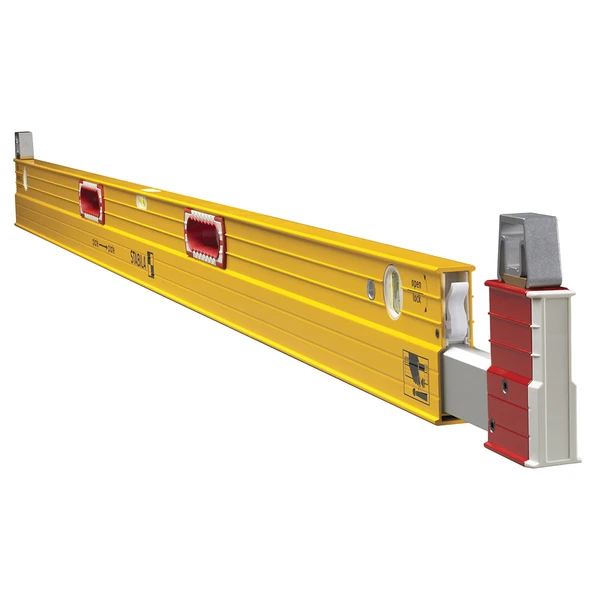

Stabila 35XXX | Type 106T Extendable Plate Levels
STABILA Plate Levels are designed for precisely positioning top and bottom wall plates plumb quickly. In addition, they are the best installation tools for tall doors, floor to ceiling sliding glass windows and high risk custom kitchen cabinet installations.
Extremely long measuring surface thanks to a unique telescopic system.
Features
- STABILA Type 106T Plate Levels
- These levels extend so tall walls, tall doors and big windows can be installed properly and quickly.
- Strong reinforced frame.
- Measuring surfaces are not machined.
- Two hand grips.
- Steel hang hole for storage.
- 6 sided keyed extension rail delivers smooth and rigid operation.
- Vial accuracy guaranteed for life.
- Plumb vial always at eye level .
- 2 plumb vials, 1 level vial.
- Opposite side is a measuring surface and straight edge.
- Positioning scale on both sides of the extension raid for FAST set-ups: : 9ft 1in, 10ft 1in, etc.

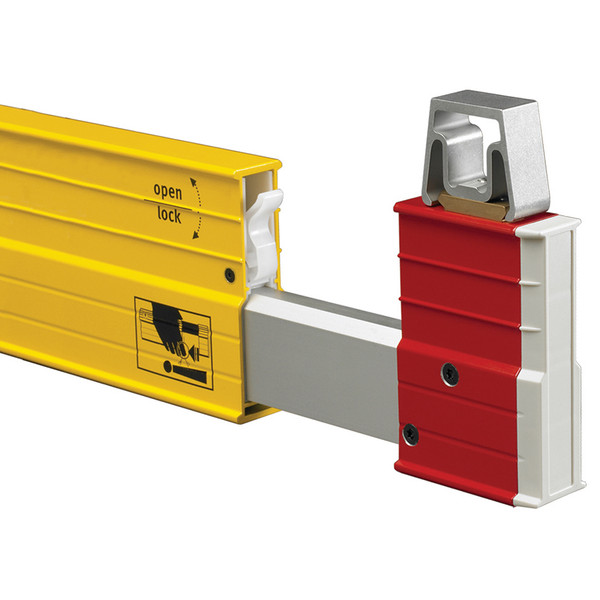

- The removable 1-5/8in stand-offs included deliver accurate plate to plate measurements around braces. They simply twist-on.
- Also available in magnetic - without stand-offs.
- Carrying cases, replacement endcaps are available as optional accessories.
- Order the maintenance kit cat. number 33000 to keep the extension system operating like new.
Spacers – accurate measurements even across irregularities and laths.
Applications
- STABILA Plate Levels are designed for precisely positioning top and bottom wall plates plumb quickly. In addition, they are the best installation tools for tall doors, floor to ceiling sliding glass windows and high risk custom kitchen cabinet installations. Plate levels are also available in magnetic.
Technical data
Measurement accuracy in normal position
±1/32in @ 72in
Measurement accuracy in reverse position
±3/64in @ 72in
Measurement accuracy in extended normal position
±1/8in @ 120in
Number of measuring surfaces
2
Profile
Reinforced 2 chamber profile
End caps
Standard
Models
| Length | Length (from–to) | UPC Barcode | Cat. # | |
|---|---|---|---|---|
 | 72 in | 72-123,75 in | 089634356103 | 35610 |
 | 84 in | 84-147,75 in | 089634357124 | 35712 |
