Stabila

Stabila #3165 LA-5P G self-leveling, 5-Point/Dot GREENBEAM Laser

No reviews yet Write a Review
$375.00
SKU:
3165
UPC:
89634031659
Weight:
2.50 LBS
Shipping:
Free Shipping

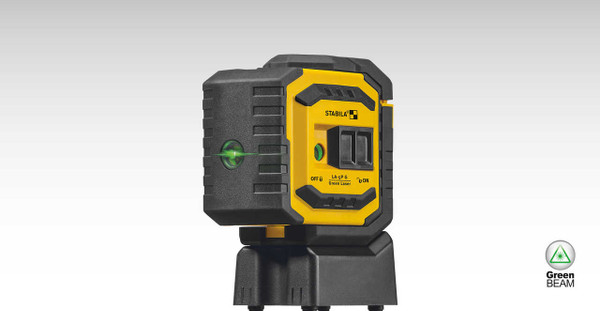

Stabila #3165 LA-5P G self-leveling, 5-Point/Dot GREENBEAM Laser

$375.00

Stabila LA-5P G self-leveling, 5-Point/Dot GREENBEAM Laser (03165)



The self-leveling, STABILA LA-5P G, projects 5-bright GREENBEAM laser dots, visible up to 60 ft. Layout points can be transferred and right angles can be set in an instant. It features a mechanical on/off switch and pendulum lock. This durable and compact, pouch laser is excellent for framing walls, interior and exterior. Builders will appreciate the ability to work directly against wood plates and metal track, in all conditions, even in brightly lit spaces. The highly efficient LA-5P G laser is powered by 3-AA batteries, providing you up to 15 hours of constant run time.




LA-5P G self-leveling, 5-Point/Dot GREENBEAM Laser

Quickly transfer layout points and set right angles, even in brightly lit conditions.



Features

  • The self-leveling STABILA LA-5P G Set features 5-bright GREENBEAM laser, pouch, removable framing base, target plate, metal wall mount plate and batteries.
  • Quickly transfer layout points and set right angles, even in brightly lit conditions.
  • The LA-5P G comes with a v-groove rare earth magnet built into the housing for secure attachment to metal.

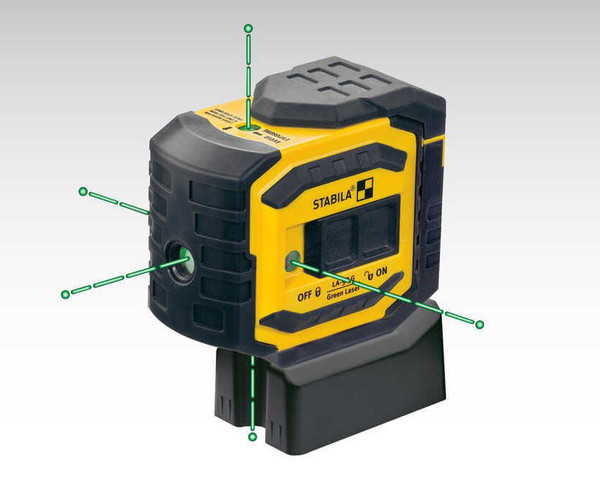

  • 5 green bright and tight dots are visible up to 60ft.
  • Up dot accuracy tolerance: Will not exceed 3/16 in @ 50ft.
  • Down dot accuracy tolerance: Will not exceed 1/4 @ 50ft.
  • Level dot accuracy tolerance: Will not exceed 3/16in @ 50ft.
  • Square dot accuracy tolerance: Will not exceed 1/8in @ 50ft.
  • Warranty: Up to 2 years from the date of purchase.
  • Mechanical off/on switch with pendulum lock.
  • Self-leveling range: 4.5 degrees.
  • Up to 15 hours of constant run time on 3-AA batteries.



LA-5P G self-leveling, 5-Point/Dot GREENBEAM Laser


5 green bright and tight dots are visible up to 60 ft.



Applications

  • Positioning/setting interior and exterior walls.
  • Transferring layout points from floor to ceiling.
  • Laying out square within 60 ft.



Technical data

Laser class
2
Output
< 1 mW
Laser wavelength
510 - 530 nm
Self-levelling range +/-
4.50°
Levelling accuracy +/-
3/16 in @ 30 ft
Laser beam accuracy (up) +/-
3/32 in @ 30 ft
Laser beam accuracy (down) +/-
1/8 in @ 30 ft
Measuring range of visible point
60 ft
Operating life
7 h
Protection class
IP 54
Tripod connection
1/4"-20



Models

LA-5PG: 5-point laser, 5-piece set

LA-5PG: 5-point laser, 5-piece set

LA-5PG 5-point laser, metal wall mount plate , green plastic target plate, pouch, 3 x AA 1.5 V batteries
UPC Barcode089634031659
Cat. #03165
