Stabila

Stabila 05700 LAR 350 Interior/Exterior Laser Kit

(No reviews yet) Write a Review
SKU:
05700 TR
UPC:
089634057000
MPN:
05700
Weight:
36.40 LBS
Shipping:
Free Shipping
  • Stabila 05700 LAR 350 Interior/Exterior Laser Kit
  • Stabila 05700 LAR 350 Interior/Exterior Laser Kit
  • Stabila 05700 LAR 350 Interior/Exterior Laser Kit
  • Stabila 05700 LAR 350 Interior/Exterior Laser Kit
$2,000.00

Description

Stabila 05700 LAR 350 Interior/Exterior Laser Kit

Another world's first! The revolutionary MOTION CONTROL remote makes every measuring task easier, quicker and more effective. You can control the LAR 350 in no time at all with the remote control's motion sensing capability. The built-in sensor detects your hand movements and transmits them to the laser. Discover a multitude of ground-breaking technologies and functions. Thanks to the integrated protection systems, nothing gets in the way of this laser – not even falls, rain or dust. A strong measurement package for professionals with responsibility. Typically STABILA – because precision is the crucial factor.

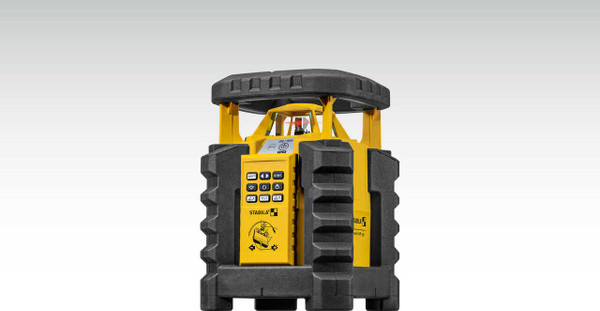

LAR 350 rotary laser with dual slope

Innovative MOTION CONTROL.

Features

  • Fully automatic servo controlled rotary laser for horizontal and vertical applications, with remote controlled dual axes slope.
  • Innovative MOTION CONTROL – quick, reliable and user friendly laser operation by rotating the remote control.
  • DUAL SLOPE inclination function – controlled inclination setting of up to 5° on two axes'.
  • MASKING MODE – working area which can be limited in rotation mode. The laser beam is only emitted in a defined area.
  • LED ASSIST system – for easy operation and safety in the workplace. Integrated LEDs indicate, for example, which axis is currently tilted or is being tilted.
  • MANUAL ALIGNMENT function – pivoting an axis in vertical operation.
  • Patented STABILA PROTECTOR system – perfect protection, even when the laser is dropped from a tripod at a height of up to 6ft.
  • Waterproof and dustproof in accordance with protection class IP 65.
  • Large working area with REC 300 Digital set receiver, up to 2600 ft in diameter.
LAR 350 rotary laser with dual slope


Impact protection from a max. height of 1.80 m.

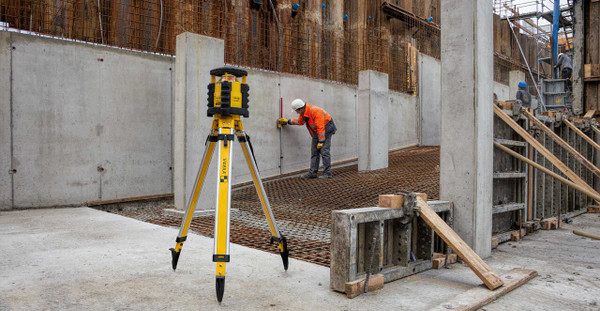

Applications

  • In bricklaying – creating the levelling course.
  • In concrete construction –walls, flat work, patios and driveways.
  • In paving - parking lots and drainage.
  • In commercial construction – layout and framing.
  • In residential construction - Squaring, layout and framing.
  • In excavation and sewer work - site and underground work.
  • In landscaping work – retaining walls, ponds and pavers.
  • In carpentry and wood construction – framing, siding and trim work.
  • In civil engineering and pipeline construction – installing pipelines.

Technical data

Laser class
2
Output
< 1 mW
Laser wavelength
635 nm
Self-levelling range +/-
Levelling accuracy +/-
1/8 in @ 100 ft
Diameter of working area for set receiver
2600 ft
Operating life
80 h
Protection class
IP 65
Tripod connection
5/8"-11

Models

LAR 350 rotation laser, 9-piece set

LAR 350 rotation laser, 9-piece set

LAR 350 rotation laser, REC 300 Digital receiver, RC-LAR350 remote control, heavy duty tripod, elevation rod, 90° angle mount, laser goggles, target plate, carrying case, 2 x D 1.5 V batteries, 4 x AA 1.5 V batteries
UPC Barcode089634057000
Cat. #05700
