Stabila
Stabila #03185 LAX 300G Green Beam Line/Dots Laser
- SKU:
- 3185
- UPC:
- 89634031857
- MPN:
- 3185
- Weight:
- 6.00 LBS
- Shipping:
- $29.95 (Fixed Shipping Cost)
- »:
- FREE FREIGHT on all Stabila items over $100.00
Description

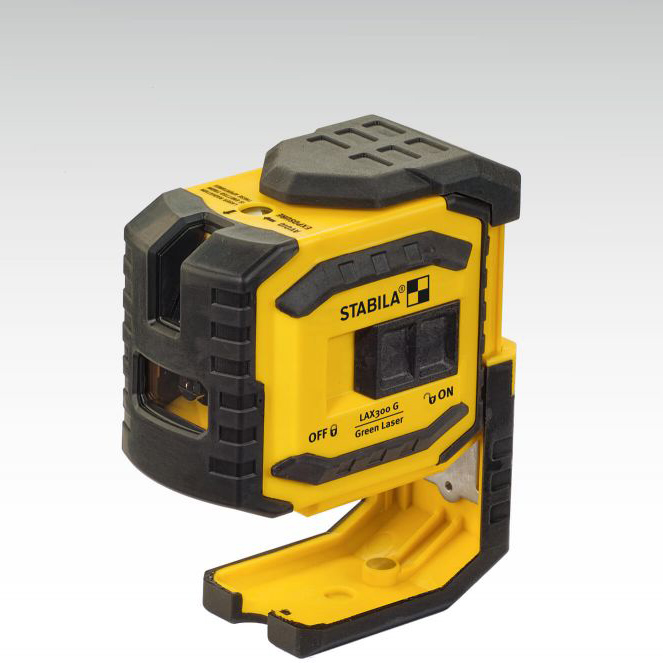

Stabila #03185 LAX 300G Green Beam Line/Dots Laser
The LAX 300G is the ideal partner for interior construction professionals who need accurate laser lines with optimum visibility. The innovative STABILA GREENBEAM technology provides razor-sharp, extremely bright, long laser lines to make your work even more efficient and productive. You can perform plumb-line and leveling work on the floor, wall and ceiling at the same time – making the laser a true all-rounder with numerous areas of application.
Features
- Self-levelling line laser with plumb-line dots.
- Work quickly and directly on the fine laser lines using STABILA GREENBEAM technology – with optimum visibility up to 90ft.

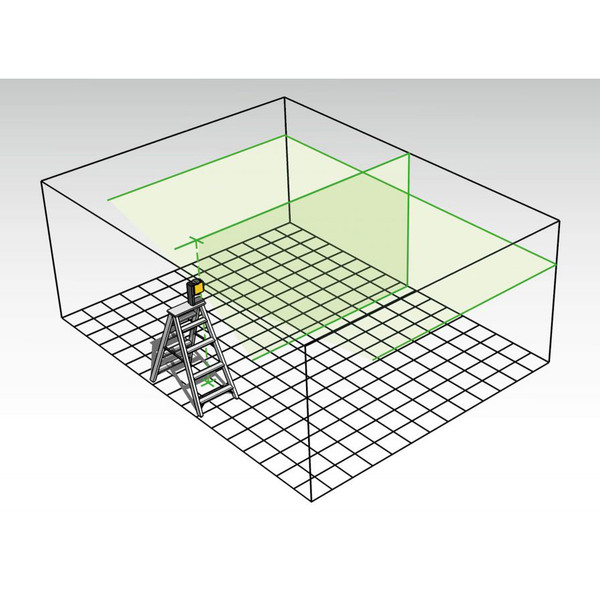

- The versatile technology provides 1 horizontal line, 1 vertical line and plumb-line dots upwards and downwards.
- Visible vertical line tracks on the wall behind the laser itself.
- The latest generation of energy-saving laser diodes enables an operating time of up to 15 hours.
- Quick self-levelling function thanks to pendulum technology designed for the construction site.
- Easy to change functions using single-button operation.

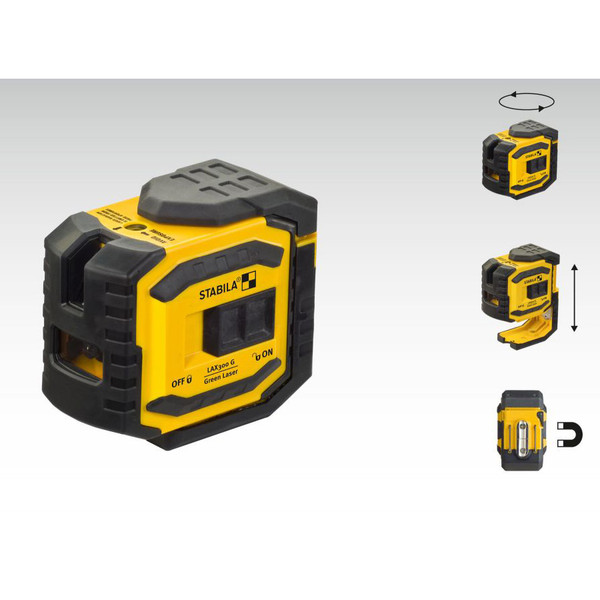

- Versatile use: can be used on the floor, on a tripod (1/4in thread), with rare-earth magnets on metallic objects or on the wall bracket.
- Shock-absorbent STABILA soft grip casing.
- The laser can be pivoted 360° inside the housing.
- Protection of the optics against dust and scratches in park position.
- Protection class IP 54.
- Belt pouch.
Applications

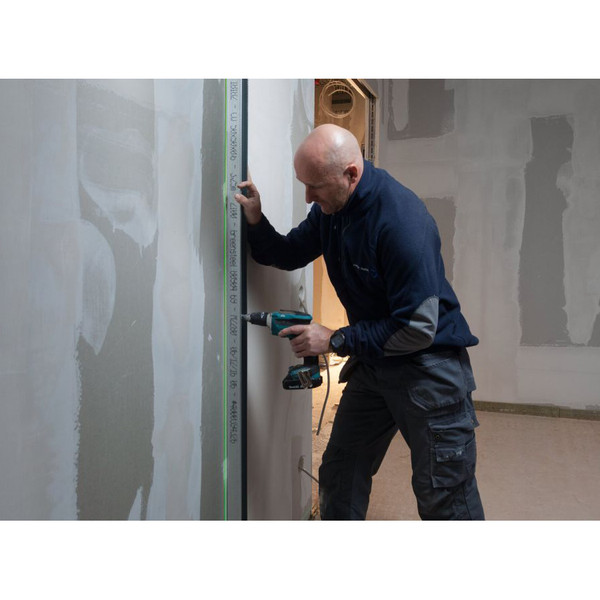

- In drywall construction – suspending ceilings, positioning interior and partition walls, fitting U-profiles and transferring layouts from the floor to the ceiling.
- In electrical installation work – fitting and aligning electrical installations.
- For tiling work – marking out the tile layout.
- In window fitting – for levelling the window height.
- For joinery – construction of kitchen cupboards, aligning the worktops.
Technical data
Laser class
2
Output
< 1 mW
Laser wavelength
510 - 530 nm
Self-levelling range +/-
4.50°
Levelling accuracy +/-
3/16 in @ 50 ft
Line straightness +/-
1/8 in @ 50 ft
Laser beam accuracy (up) +/-
3/16 in @ 50 ft
Laser beam accuracy (down) +/-
1/4 in @ 50 ft
Measuring range of visible point
90 ft
Measuring range of visible line
90 ft
Operating life
15 h
Protection class
IP 54
Tripod connection
1/4"-20
Models
LAX 300G Green Beam Line/Dots Laser

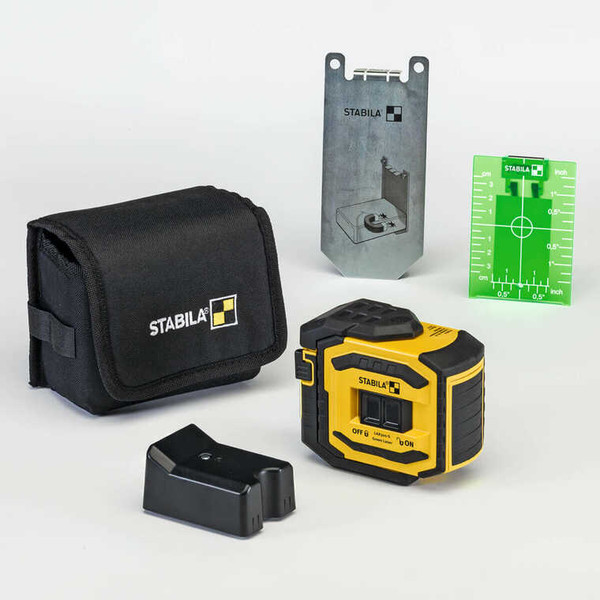

Self-levelling LAX 300 G cross line plus plumb point laser, high stability framing base, target plate, wall bracket, belt pouch, 3 x AA 1.5 V batteries
UPC Barcode089634031857
Cat. #03185
