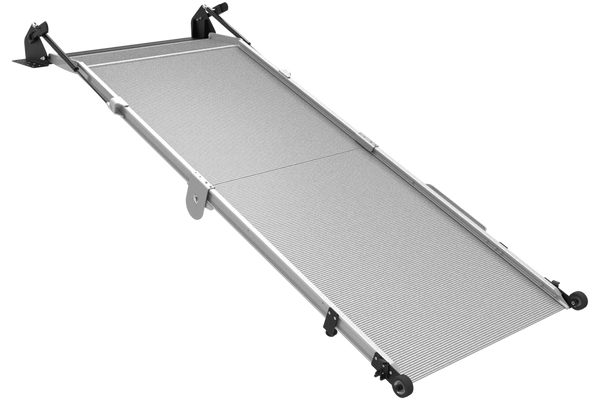

Link Mfg. | LB20 Series Bi-fold Mount / Standard Mounted Aluminum Ramps | NO Spring Assist

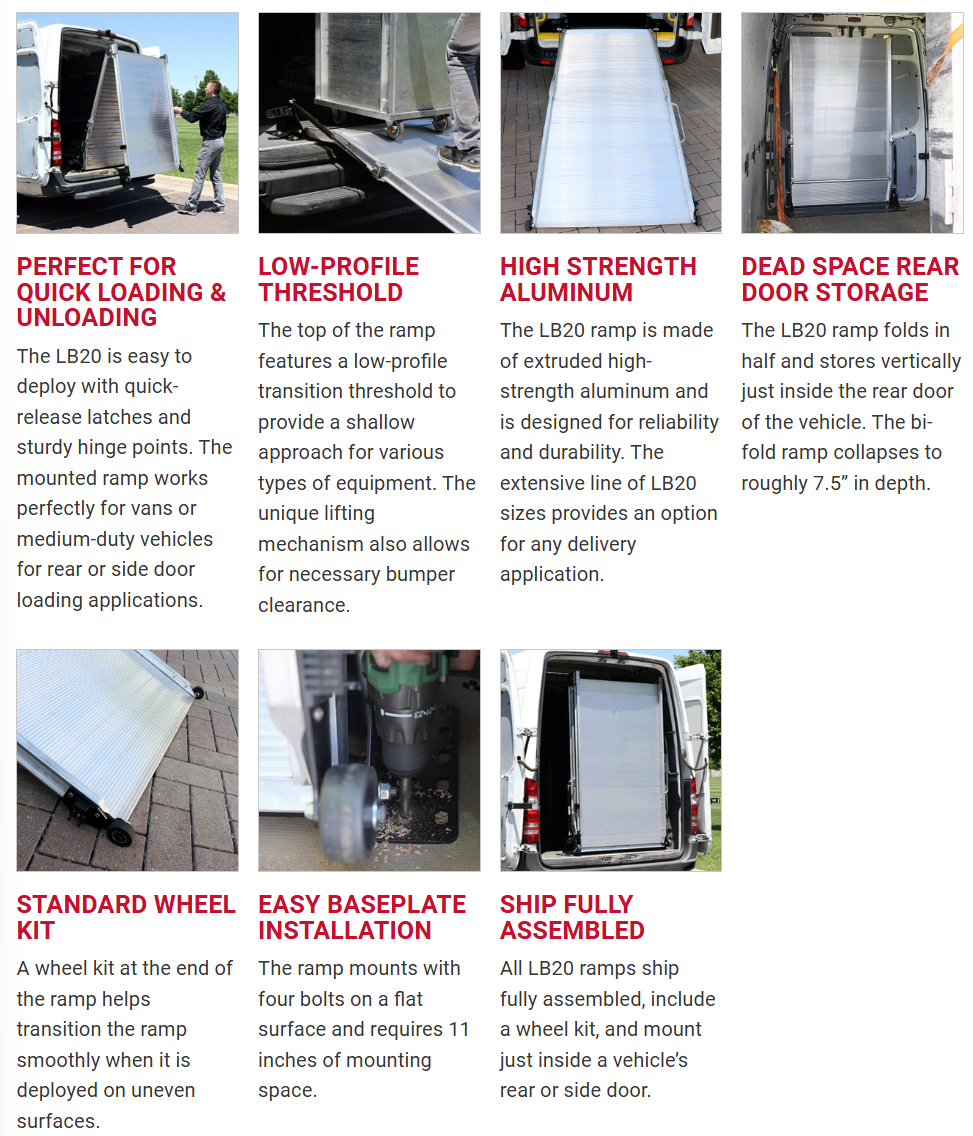

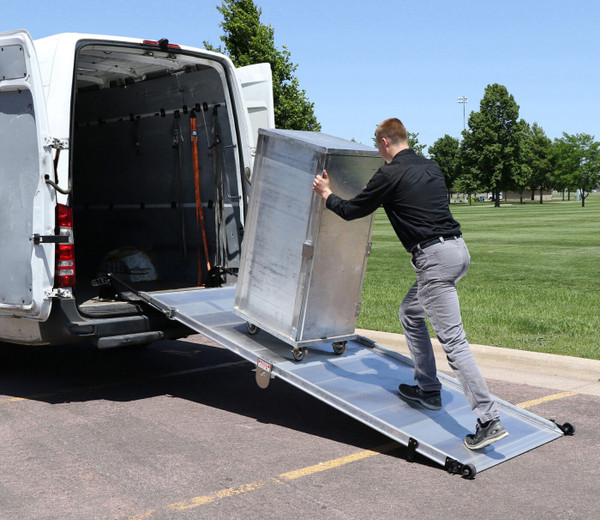

The LB20 Series ramp is a high-strength aluminum, surface-mount ramp that installs easily into any vehicle with a flat surface. The unique design stores vertically and can be positioned for use in seconds. It increases efficiency while reducing dangerous lifting and equipment damage. The ramp comes in both standard and spring-assist versions. The LB20 Series weighs between 84 to 225 pounds and its weight capacity ranges between 750 and 1,500 pounds, depending on the model.

Link Manufacturing has developed a broad array of deployable mounted aluminum ramp solutions engineered for commercial vans and box trucks. Link’s lightweight, lowprofile mounted aluminum ramps vertically mount just inside a vehicle’s rear or side doors. Each mounted ramp is made from high-strength aluminum and engineered for simple installation and ease of use.

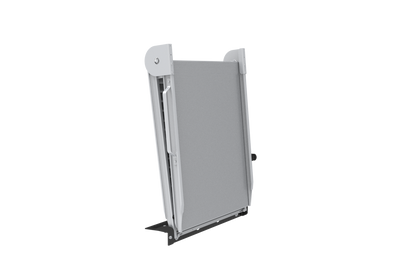

All Link mounted ramps are fast, easy and convenient to deploy, use and stow and an optional built-in spring assist feature is also available on some models. Opening and closing the ramp requires only 50 pounds of force and the ramps can be unfolded and folded back into their vertical, low-profile storage position in less than 10 seconds. By stowing vertically inside the vehicle’s cargo hold, the ramp is not exposed to the weather or road debris and takes up less than 12 inches of horizontal space.
