Werner T700000X Confined Space Kit

Werner T700000X Confined Space Kit

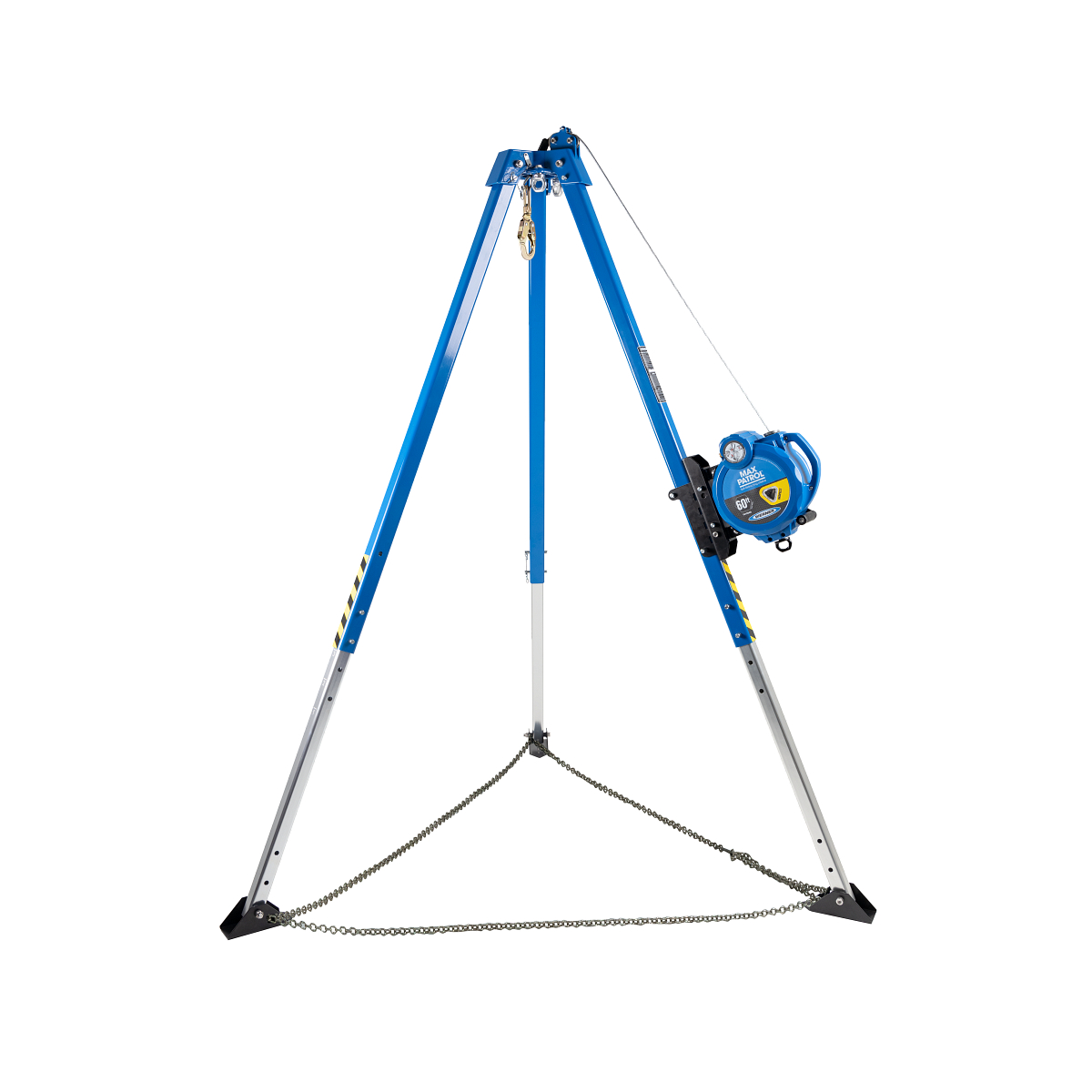

The Werner T700000X Confined Space Kit includes the T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way Self-Retracting Lifeline with Rescue Capability (SRL-R), T510045 60-foot Material Hoist, and T200007 Pulley and Carabiner. Two T100008B Mounting Brackets attach the 60-foot 3-Way SRL-R and the 60-foot Material Hoist to any leg of the tripod. Also included is the T510080B Hoist Bracket that attaches the 60-foot Material Hoist. The Tripod extends from 58-97-inches in height for installation over openings with a maximum diameter of 42-inches when fully extended and meets the requirements of ANSI Z359.18-2017 Type A. The 3-Way SRL-R is designed for a single user with a capacity up to 310 pounds total working weight and has an aluminum housing with a lifting ratio of 6.5:1. When tested to the requirements of the ANSI Z359.14-2021 standard for Class 1 for SRLs, the 3-Way SRL-R has an average arrest force of 1,350 pounds and a maximum arrest distance of 24-inches. The hoist is capable of raising and lowering loads of up to 450 pounds. The Material Hoist has 60 feet of 3⁄16-inch diameter galvanized steel cable.

Features

• Confined Space Kit with Tripod, 60-foot 3-Way SRL-R, Bracket, Pulley, Carabiner, Hoist Bracket, and 60-foot Hoist
• Confined Space Kit includes T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way SRL-R, (2) T100008B Mounting Brackets, T510080B Hoist Bracket, T510045 60-foot Material Hoist and T200007 Pulley and carabiner
• High strength, lightweight Aluminum Tripod extends from 58-inches to 97-inches in height
• Tripod meets ANSI Z359.18-2017 Type A and OSHA regulations
• The 60-foot 3-Way SRL-R has maximum arrest distance of 24-inches
• 3-Way SRL-R meets ANSI z359.14-2021 Class 1 SRL-R and OSHA Standards
• Material Hoist is capable of raising and lowering loads of up to 450 lb
• Pulley is for use with up to a 3/16-inch diameter steel cable and has an 8,100 lb tensile breaking strength

Package Contents
