Stabila #6520 LD 520 | 660ft Video Laser Distance Measurer

No reviews yet Write a Review
$630.00
SKU:
6520
UPC:
89634065203
Weight:
3.00 LBS
Shipping:
Free Shipping
»:
FREE FREIGHT on all Stabila items over $100.00

Stabila #6520 LD 520 | 660ft Video Laser Distance Measurer

$630.00

Stabila #6520 LD 520 | 660ft Video Laser Distance Measurer

See your target outdoors up to 660ft, using the built-in video camera with 4x zoom function, even when the laser point is not visible. Transfer the data via the integrated Bluetooth® Smart 4.0 technology to your smartphone or tablet. This tool has a host of 18 applications for tradesmen and professionals alike. It is the fast and efficient way to measure and calculate material or labor costs.


LD 520 660ft Video Laser Distance Measurer

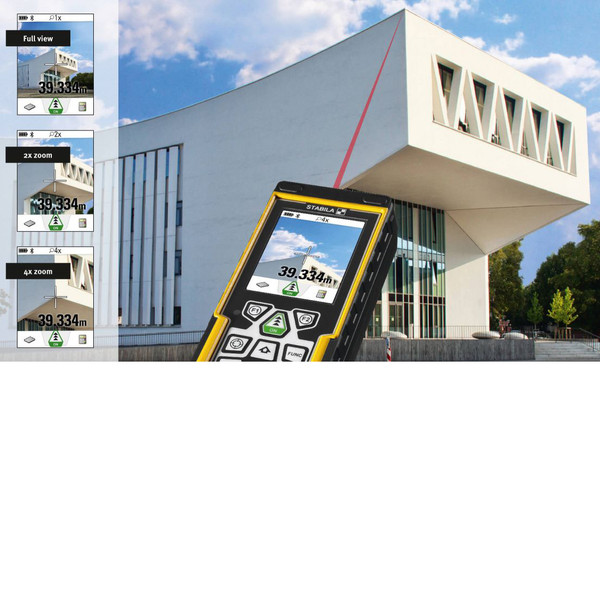

Integrated digital target locator with 4x zoom.

Features

  • Integrated video based target locator with 4x zoom for accurate locating over large distances, even in strong sunlight.
  • Bluetooth® Smart 4.0 technology for the wireless transfer of measurement data from the laser to a smartphone or tablet.
  • 360° inclination sensor for flexible measurement from any position (displays ± 180°).
  • Built-in calculator.

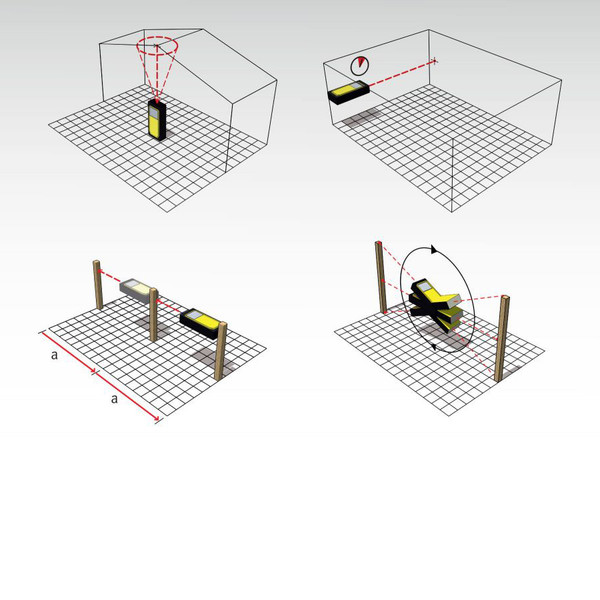

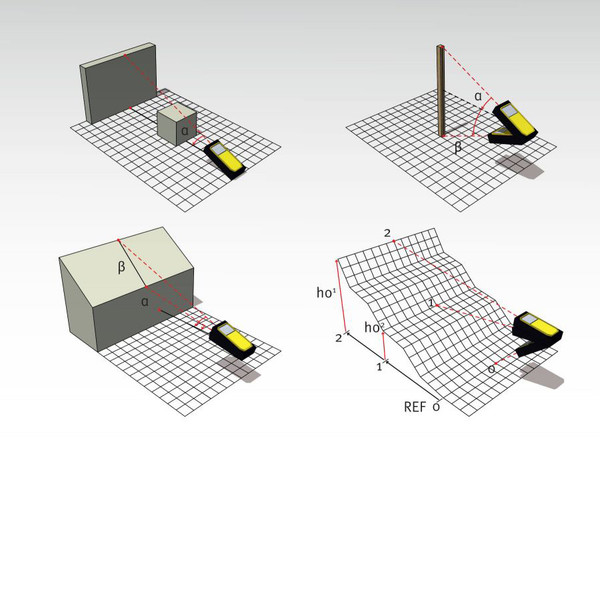

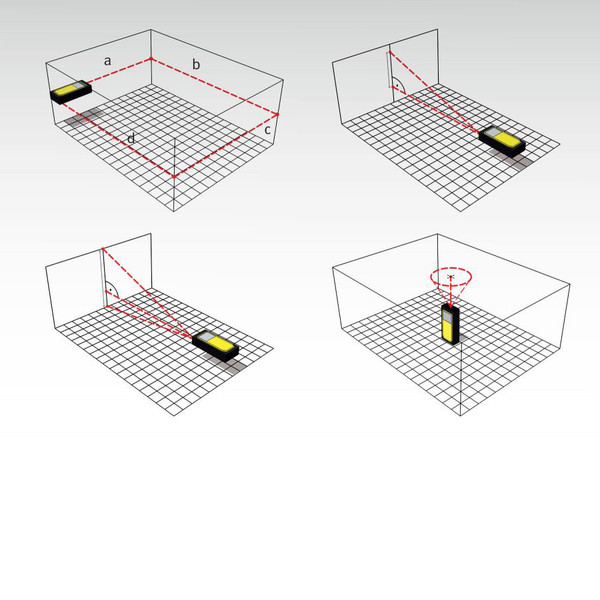

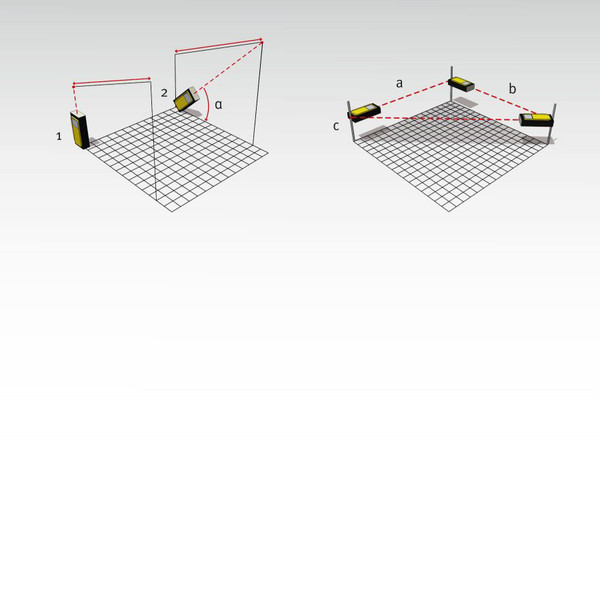

  • Comprehensive function package – 18 functions (including MIN and MAX tracking, indirect distances and heights, elevation profiles).
  • ISO-certified distance measurer – over the range of 660ft the accuracy tolerance will not exceed 1/16in.
  • back-lit display makes it very easy to read.
  • Impact-resistant housing with shock-absorbent STABILA soft grip casing.
  • Protection class IP 54: protection against dust and water.
  • 1/4-20 thread for connecting to a tripod. When measuring outdoors and over long distances, invest in a good tripod. see cat. num. 07480.
  • Includes a belt pouch and wrist strap.
LD 520 660ft Video Laser Distance Measurer

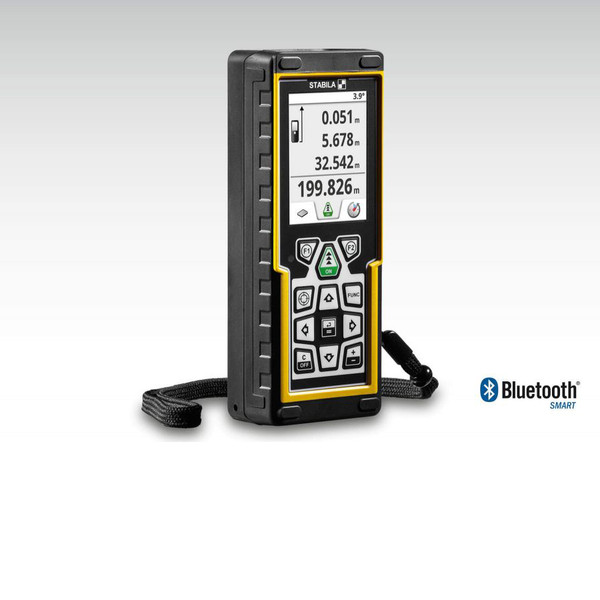

Bluetooth® Smart 4.0 for direct data transmission.

Applications

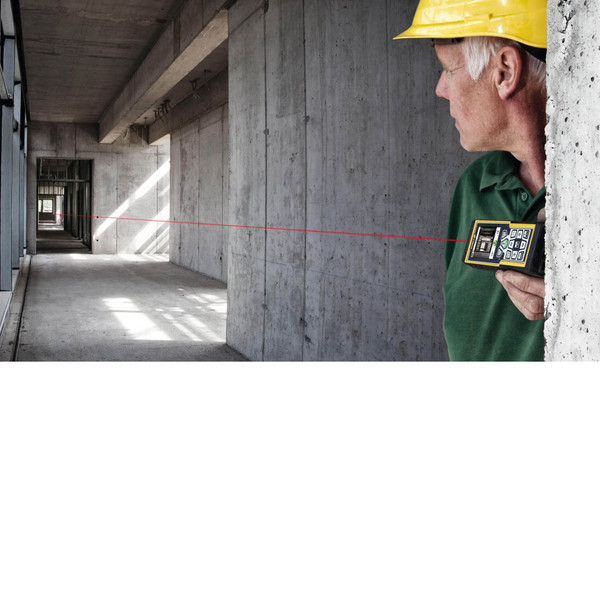

  • For everyone measuring to fixed targets outdoors or indoors at long ranges.

Technical data

Laser class
2
Output
< 1 mW
Laser wavelength
635 nm
Accuracy +/-
1/16 in
Min. measuring range
0.16 ft
Max. measuring range
660 ft
Operating life (number of measurements)
5000
Storage option
Yes
With data transfer
Yes
Tripod connection
1/4"
Functions
18
Protection class
IP 54

Models

LD 520 660ft Video Laser Distance Measurer

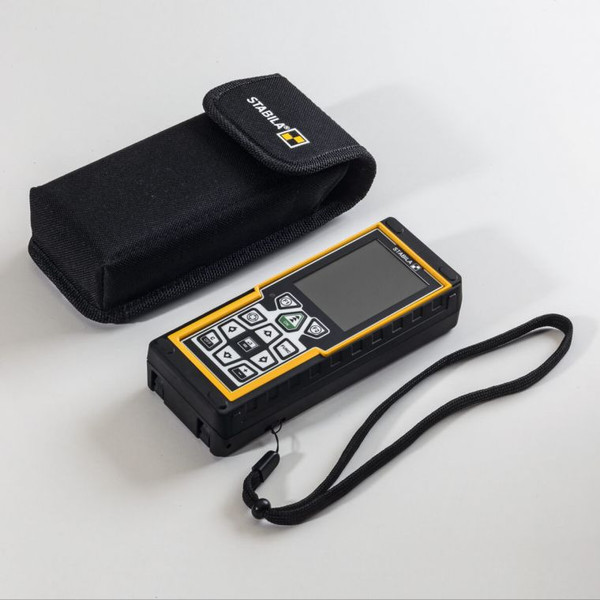

LD 520 laser distance measurer, belt pouch, wrist strap, 2 x AA batteries
UPC Barcode089634065203
Cat. #06520
