Stabila

Stabila 364XX | Type 196-2 K Mason Levels

(No reviews yet) Write a Review
SKU:
364XX
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Stabila 364XX | Type 196-2 K Mason Levels
  • Stabila 364XX | Type 196-2 K Mason Levels
  • Stabila 364XX | Type 196-2 K Mason Levels
  • Stabila 364XX | Type 196-2 K Mason Levels
  • Stabila 364XX | Type 196-2 K Mason Levels
$78.23 - $160.50

Description

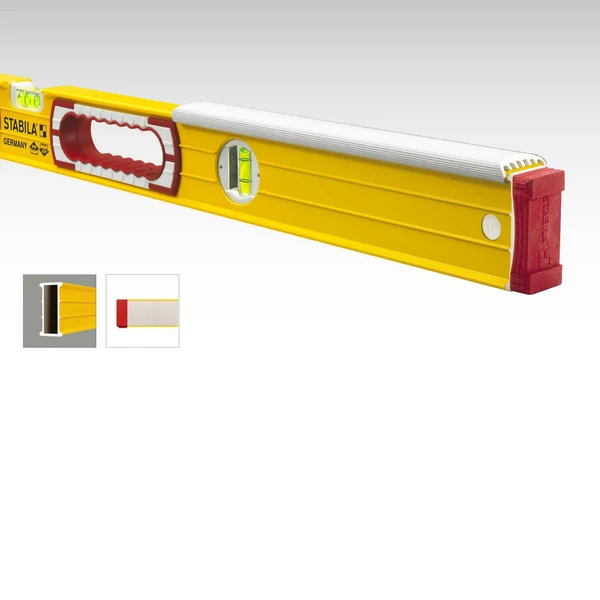

Stabila 364XX | Type 196-2 K Mason Levels

This series of levels has been engineered for contractors that work with brick and block and prefer to touch or hit the level with their trowel etc. Through the two strike zones, any out-of-line bricks can be adjusted with taps of a trowel. Added to this the hand grips on the 36in and 48in lengths make for easy handling. The tough reinforced aluminum frame precisely aligned with the STABILA locked vial system is the guarantee for accuracy on any harsh building site.


Type 196-2 K Mason Levels

Ultra-rigid aluminium rectangular profile with integrated STABILA impact protection for immediate correction of deviations.

Features

  • Tough aluminum frame with two strikes zones to protect from the repeated hits of a trowel.
  • Large hand grips on 36in and 48in lengths.
  • Reinforcing ribs on the frame for added strength and grip.
  • Precision-milled measuring surface.
  • Always at eye level – the second plumb vial is offset towards the center, making it easy to read in all measuring positions.
  • Shock-absorbing, removable end caps – protects the frame against repeated drops and falls.
  • Easy to clean with water and brush.
  • STABILA's vial installation technology delivers best in class reliability – measuring accuracy in normal and reverse position will not exceed 1/32in over 72 inches
  • The white housing material around the vials is contoured so it is easy to clean.
  • Equipment: 1 horizontal vial, 2 plumb vials, milled measuring surface, 2 hand grips on the 36in and 48in lengths. Metal sleeve hang hole so you hang the level up off the floor.
  • Protect your levels with a case. See cat. number 30015.
Type 196-2 K Mason Levels


Integrated STABILA impact protection – it is no longer necessary to continuously change tools when bricklaying Milled measuring surface – no discolourations on the surface.

Applications

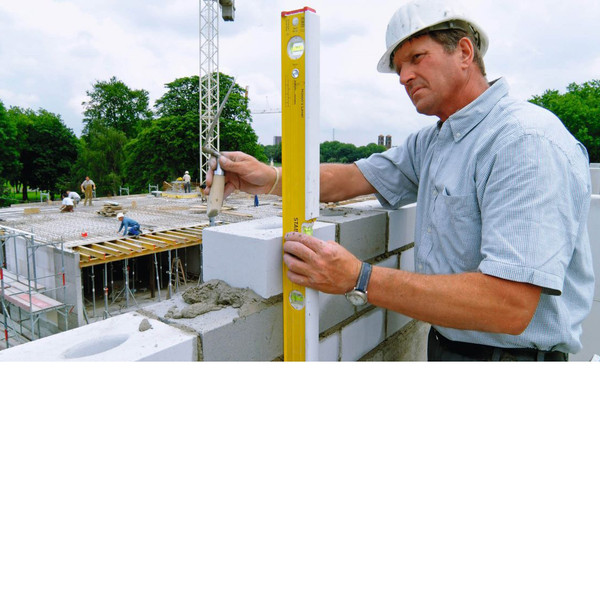

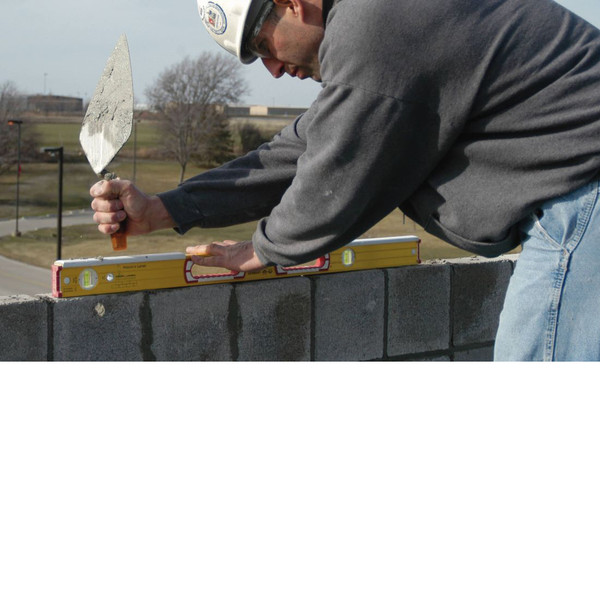

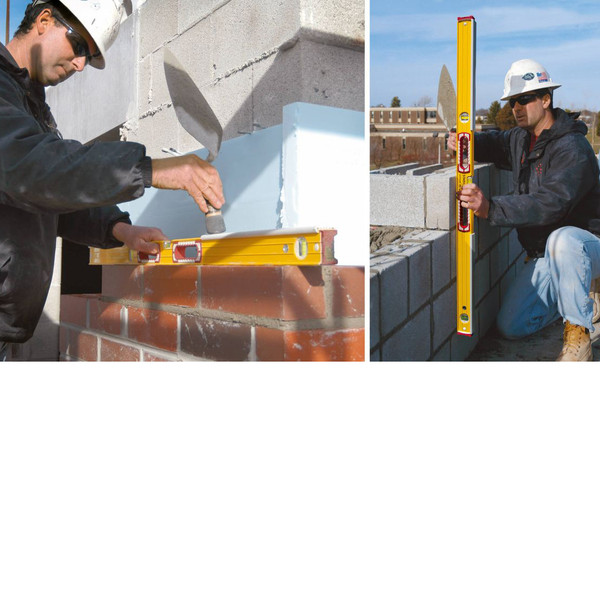

  • The STABILA Mason's level is designed for those who set brick, block and stone with a trowel. Striking shields allow the top of the level to be struck with the butt or blade of a trowel without causing damage to either the level or the trowel.

Technical data

Measurement accuracy in normal position
±1/32in @ 72in
Measurement accuracy in reverse position
±1/32in @ 72in
Number of measuring surfaces
1
Profile
Rectangular profile with ribs
End caps
Removable / Wall Grips / Shock Absorbing

Models

 LengthUPC BarcodeCat. #
089634481966 48196
16 in 089634364160 36416
24 in 089634364245 36424
36 in 089634364368 36436
48 in 089634364481 36448
